Fitting BEAM-IT-UP in your home

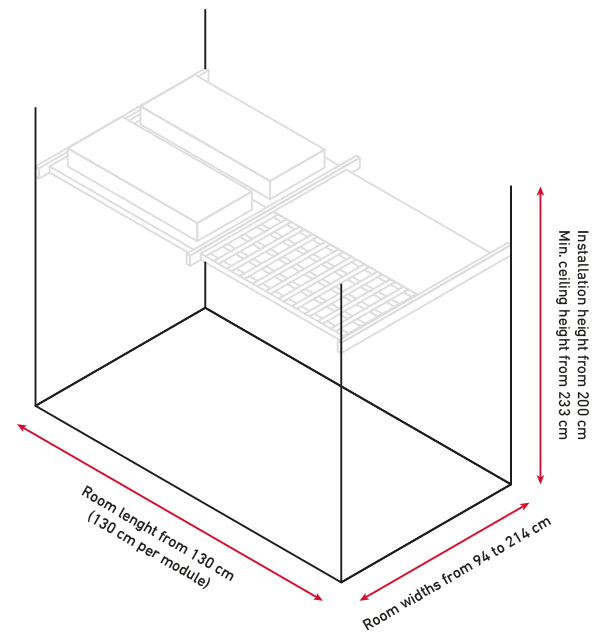

Room size
Room dimensions | |
| Lenght: | From 130 cm |
| Width: | From 94 - 214 cm |
| Height: | From 233 cm |
Different room size?
If you have different room size - smaller width than 94 cm or wider than 214 cm - please call the office and we can make a special offer for you.
Tel. 01376 528000

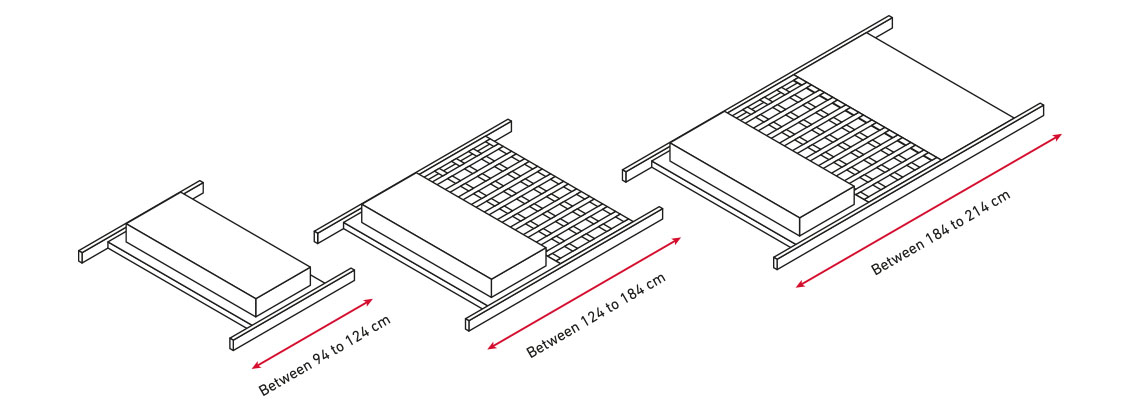

BEAM-IT-UP width
BEAM-IT-UP width | |
| 1 module: | Between 94 - 124 cm |
| 2 modules: | Between 124 - 184 cm |
| 3 modules | Between 184 - 214 cm |
How to fit BEAM-IT-UP in your home
The BEAM-IT-UP standard solution is between 94 and 214 cm width of room. The beams are telescopically expandable. If your room is below 94 cm or wider than 214 cm please call the office an we will make a quotation for you.

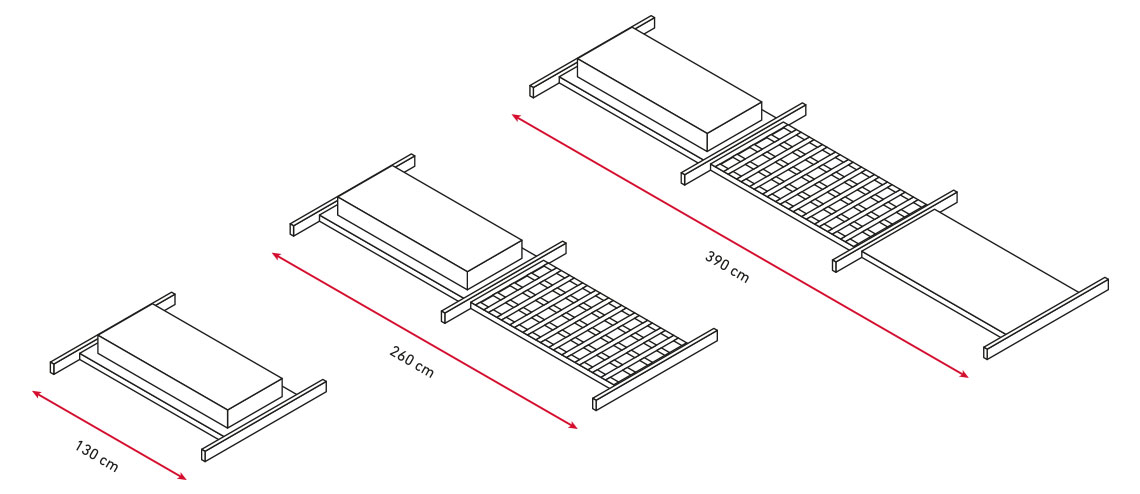

BEAM-IT-UP lenght
BEAM-IT-UP lenght | |
| 1 module: | 130 cm |
| 2 modules: | 260 cm |
| 3 modules | 390 cm |
Create space in your home
There is no maximum length – the wall rail can install several rails after each other.
The comfort zone
Easy to handle - have a look at the comfort zones in different heights
The shoe storage and storage box organizer are coming down from above to give you storage in a comfortable height when you are more than 160 cm high. People and children below 160 cm cannot work the system without a stool or a small ladder.
*Being 160 cm, you need to mount the BEAM-IT-UP in a height of 210 cm to have a normal operation of the BEAM-IT-UP without a stool.
Find the solutions that fits your home and needs
Measure your hallway width and length. Drag and drop the different storage modules into the room frame.
