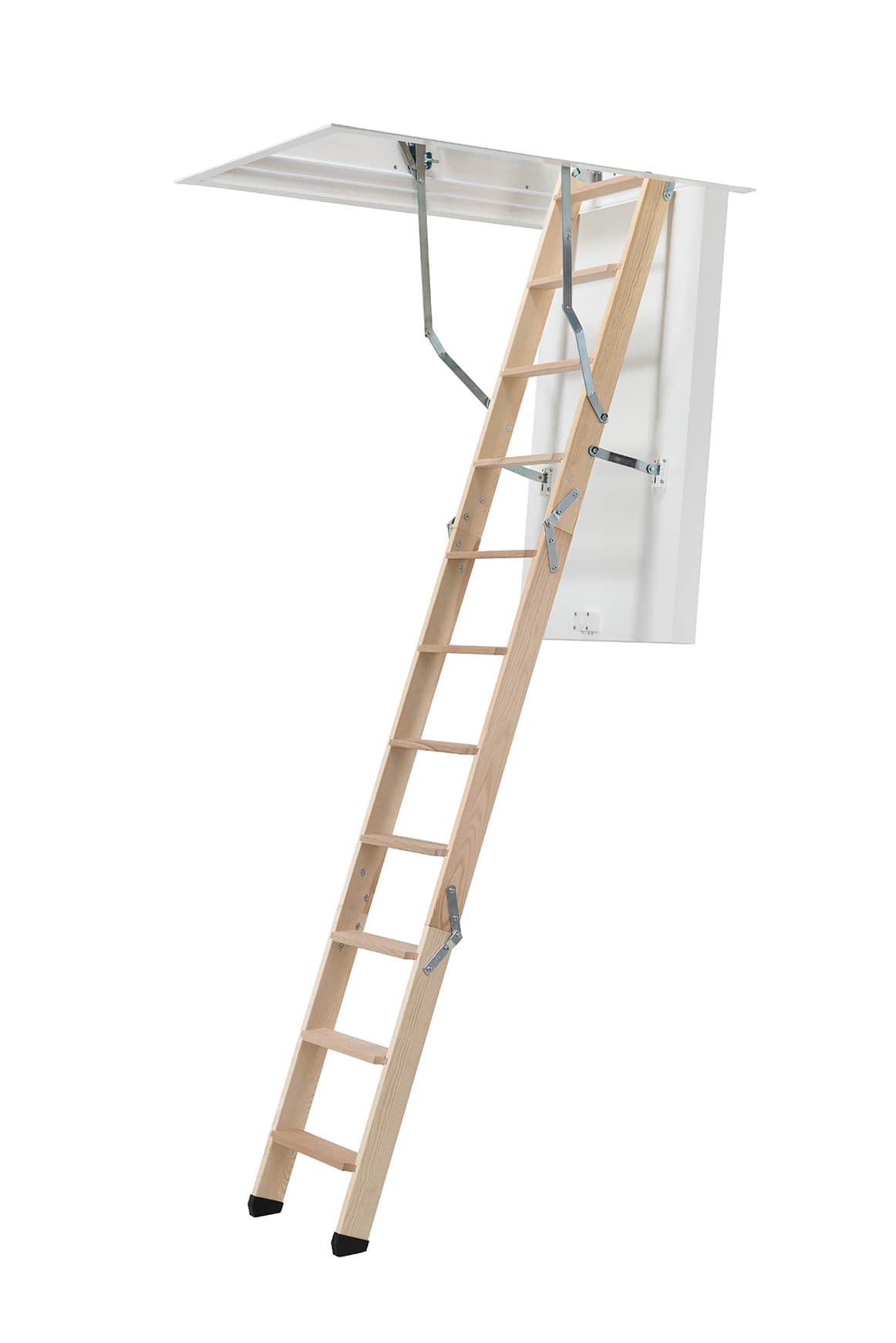

Loft ladder clickFIX® 76  made to measure



Loft ladder with excellent heat insulation

We also offer our top range model as a made to measure loft ladder to provide the best possible loft ladder solution possible to fit into your home. With this loft ladder you have the security that you will have no thermal bridges in casing or trapdoor. DOLLE loft ladder clickFIX® offer excellent heat insulation for your home, the trapdoor is insulated with a thick polystyrene layer and white facing. This loft ladder has the market leading U-values and is tested as a building component with the market lowest tested U-value of 0.49 W / m²K.



LOFT LADDER MADE TO MEASURE IS EASY TO INSTAL FOR TRADE PROFESSIONALS AND DIY'ERS

Thanks to its low weight and patented assembly technology with click modules, clickFIX® can also be easily installed by one person. Its simple, align the hatch box, screw in place, hook in the hatch cover and ladder section and adjust to the room height, finished.



HIGH QUALITY LOFT LADDER – MADE TO MEASURE IN LONG-LASTING PROTECTION

The 76 mm thick trapdoor of the DOLLE clickFIX® keeps heat efficiently in the living area and is also CPL-coated. With this particularly robust laminate, the trapdoor is significantly more abrasion, scratch and impact-resistant than other surfaces. The secret lies in the top layer, which consists of melamine resin. It withstands light scratches as well as normal dirt, it's solvent and heat resistant, smudge-proof and easy to clean.

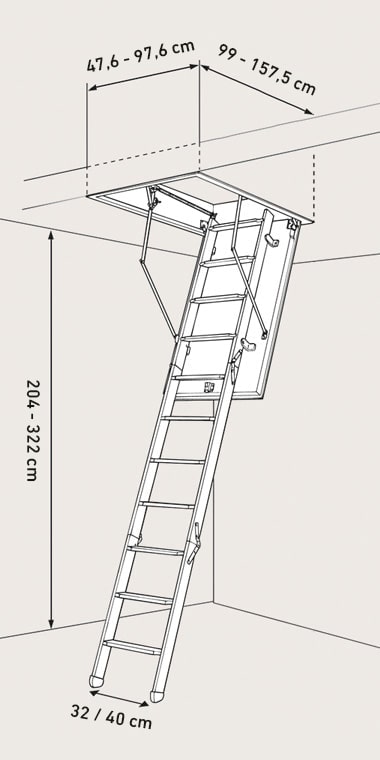

Specifications



Outside casing 99 - 157.5 × 47.6 - 97.6 cm*
Opening size 105.5 - 160 × 50.1 - 101.1 cm
Ceiling height 204 - 322 cm**
Casing height 24 - 80 cm
Type 3 or 4 section
Tested u-value 0,49 W/(m2K)
Insulation 70 mm expanded polystyrene (EPS)
Maximum load 150 kg, EN 14975
Air tightness Class 4, EN 12207

* If the outside casing dimensions exceed 240 cm in total, the ceiling height can be max. be 274 cm (12 step ladder).
If the outside casing width is 53.9 cm or less, the casing length must be at least 117.5 cm.
** If the ceiling height is over 274 cm, the casing length must be 137.5 cm or more.
